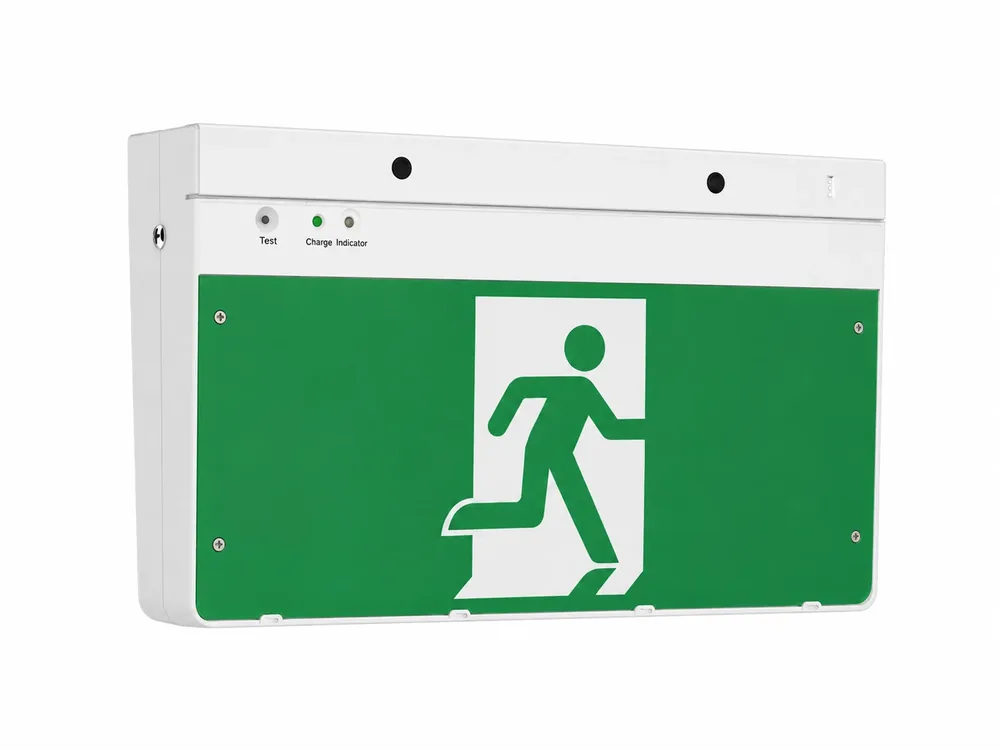

All-in-One Slide Connect Surface Mount LED Dynamic Exit
An intelligent dynamic exit sign that connects directly to the building's fire detection or life safety system. In an emergency it displays a bright red X over compromised escape routes, while the green running man guides occupants toward the nearest safe exit — active guidance that goes beyond static signage. Suited to offices, theatres, stadiums, schools, hospitals, shopping centres, airports and apartments.
- Dynamic red X marks unsafe exit routes
- Green running man actively guides to the nearest safe exit
- Triggered by the building safety system via 24VDC or voltage-free (dry contact) signal
- Standard maintained exit sign and dynamic mode in one fitting
- High-temperature LiFePO4 lithium battery
- 24 metre viewing distance
- Compliant with AS/NZS 2293, AS/NZS 60598.1 and EMC
Specifications & Downloads
Documentations & Downloads
Technical Specifications
- Operating Mode
- Dual Operating Mode (Maintained / Dynamic Red X)
- Operating Voltage
- 220-260V; 50Hz
- Operating Temperature
- 1° - 45° C
- IP Rating
- IP20
- Wiring
- Large Terminal Block
- Mounting Type
- Wall or Ceiling Surface Mount
- Testing System
- Manual Test Switch
- Construction
- Polycarbonate Body and Diffuser
- Classification
- C0 D6.3 C90 D6.3
- Standards
- AS/NZS 2293
- AS/NZS 60598.1
- EMC
Ordering Information
- Dimension (L X W X H)
- 370mm x 70mm x 230mm
Battery and Leds
- Battery
- High-Temp LiFePO4 Lithium Battery
- Power Consumption
- 4W
- Charging Time
- 16 Hours
- Lens
- 50,000 Hours
- Viewing Distance
- 24 Metres
- Replacement Battery
- BSLIDE - LiFePO4 Lithium Battery, 3.2V 1500mAh
Frequently asked questions
Is the EXSLIDE-DY compliant with Australian Standards?
Yes. It meets AS/NZS 2293 and AS/NZS 60598.1, is EMC compliant, and carries a C0 D6.3 C90 D6.3 classification with a 24 metres viewing distance.
What operating mode does it use?
The EXSLIDE-DY is a dual operating mode (maintained / dynamic red x) fitting operating on 220-260V; 50Hz with 4W power consumption.
Where can it be installed?
It is designed for wall or ceiling surface mount installation, carries an IP20 ingress protection rating, and operates between 1° - 45° C.
How is it wired and installed?
Connection is via large terminal block, with manual test switch testing. Construction is polycarbonate body and diffuser.
What battery and light source does it use?
It uses a High-Temp LiFePO4 Lithium Battery with a 16 hours charging time and a 50,000 Hours rated LED life. Replacement battery: BSLIDE - LiFePO4 Lithium Battery, 3.2V 1500mAh.
What are the dimensions and carton quantity?
Dimensions are 370mm x 70mm x 230mm (L x W x H).
