TEXWAY-LVAll-in-One Surface Mount LED 48V ELV Exit

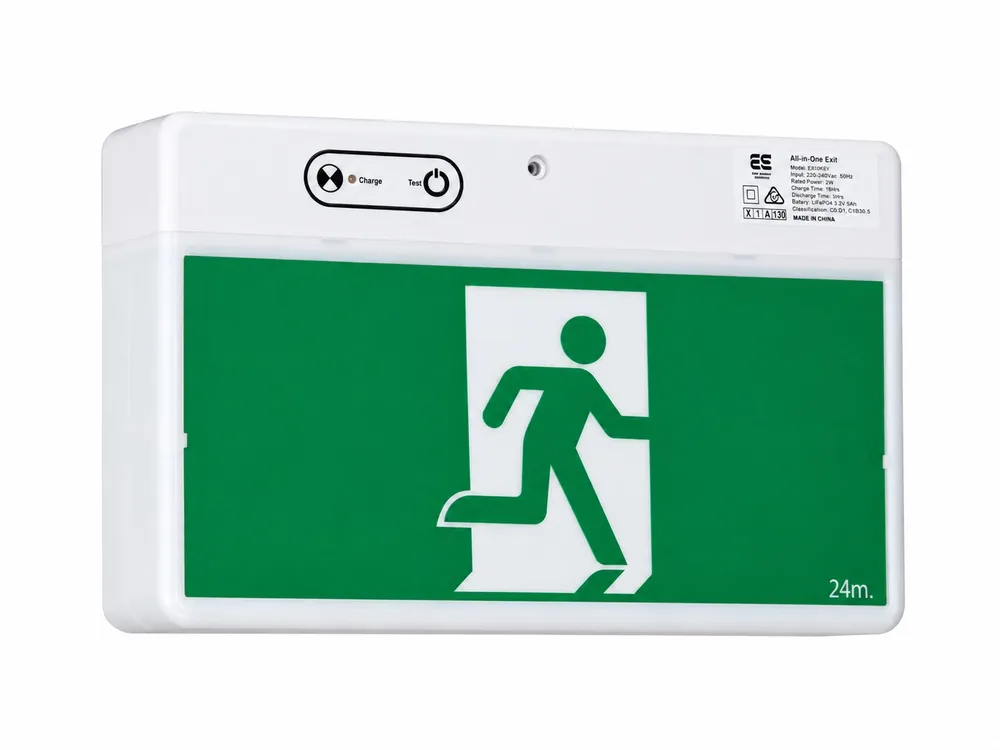

All-in-One Surface Mount LED 48V ELV Exit
An all-in-one LED exit sign for the E&E 48V SELV temporary lighting system. It plugs into the system's keyed connectors, so you can install, move and daisy-chain it on a construction site without rewiring. A LiFePO4 lithium battery keeps the exit lit when power is lost.
- 48V DC SELV plug-and-play connection
- Long-life LED rated to 50,000 hours
- High-temperature LiFePO4 lithium battery
- 24m viewing distance
- Maintained operation
- IP20, wall or ceiling surface mount
- Fully compliant with AS/NZS 2293
Specifications & Downloads
Documentations & Downloads
Technical Specifications
- Operating Mode
- Maintained
- Operating Voltage
- 48V DC
- Operating Temperature
- 1° - 45° C
- IP Rating
- IP20
- Wiring
- Weatherproof Connector
- Mounting Type
- Wall or Ceiling Surface Mount
- Testing System
- Manual Test Switch
- Construction
- Polycarbonate Body and Diffuser
- Classification
- C0 D8 C90 D6.3
- Standards
- AS/NZS 2293
- AS/NZS 60598.1
- EMC
Ordering Information
- Carton Qty
- 5 pieces
- Weight
- 1.2kg (unit) - 6kg (box)
- Dimension (L X W X H)
- 365mm x 80mm x 230mm
Battery and Leds
- Battery
- High-Temp LiFePO4 Lithium Battery
- Power Consumption
- 4W
- Charging Time
- 16 Hours
- LED Rated Life
- 50,000 Hours
- Viewing Distance
- 24 Metres
- Replacement Battery
- BWAY-LV - LiFePO4 Lithium Battery, 3.2V 1500mAh
Frequently asked questions
Is the TEXWAY-LV compliant with Australian Standards?
Yes. It meets AS/NZS 2293 and AS/NZS 60598.1, is EMC compliant, and carries a C0 D8 C90 D6.3 classification with a 24 metres viewing distance.
What operating mode does it use?
The TEXWAY-LV is a maintained fitting operating on 48V DC with 4W power consumption.
Where can it be installed?
It is designed for wall or ceiling surface mount installation, carries an IP20 ingress protection rating, and operates between 1° - 45° C.
How is it wired and installed?
Connection is via weatherproof connector, with manual test switch testing. Construction is polycarbonate body and diffuser.
What battery and light source does it use?
It uses a High-Temp LiFePO4 Lithium Battery with a 16 hours charging time and a 50,000 Hours rated LED life. Replacement battery: BWAY-LV - LiFePO4 Lithium Battery, 3.2V 1500mAh.
What are the dimensions and carton quantity?
Dimensions are 365mm x 80mm x 230mm (L x W x H), weight is 1.2kg (unit) - 6kg (box), supplied 5 pieces per carton.
