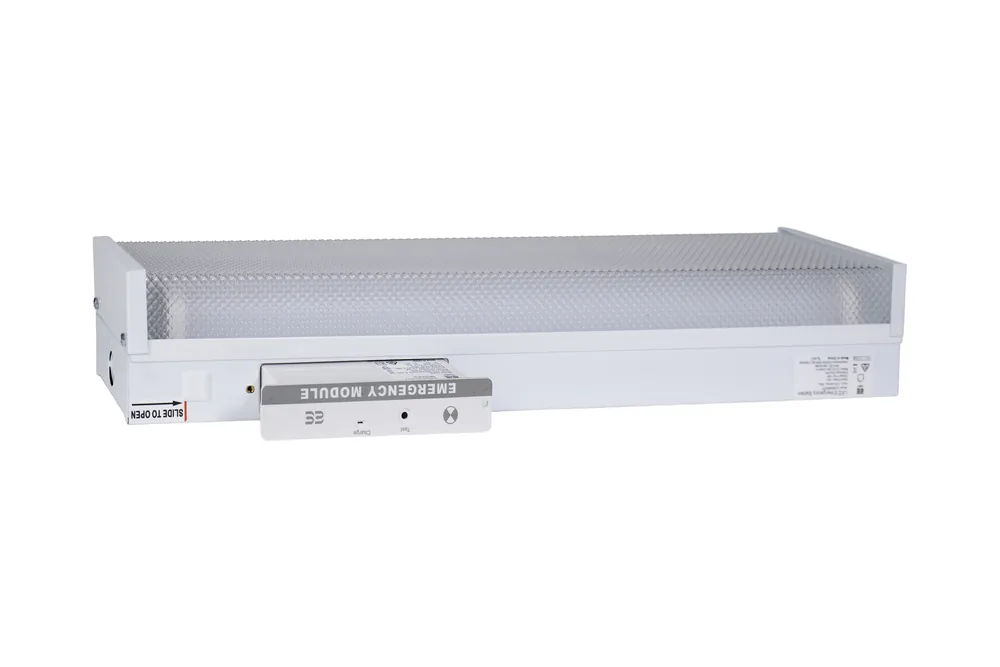

20W LED 600mm Emergency Diffused Batten
An LED emergency diffused wide batten with a prismatic diffuser for comfortable, glare-controlled light. Available in 600mm and 1200mm, it combines everyday lighting with compliant emergency operation.
- Long-life LED rated to 50,000 hours
- High-temperature LiFePO4 lithium battery
- 2000 lm light output
- Large terminal block for fast connection
- Switch-Maintained operation
- IP20, surface mount
- Fully compliant with AS/NZS 2293
Specifications & Downloads
Documentations & Downloads
Technical Specifications
- Operating Mode
- Switch-Maintained
- Operating Voltage
- 220-260V; 50Hz
- Operating Temperature
- 1° - 45° C
- IP Rating
- IP20
- Wiring
- Large Terminal Block
- Mounting Type
- Surface Mount
- Testing System
- Manual Test Switch
- Construction
- Powder Coated Metal Body and Prismatic
- Power Factor
- >0.95
- Classification
- C0 D25 C90 C40
- Standards
- AS/NZS 2293
- AS/NZS 60598.1
- EMC
Ordering Information
- Carton Qty
- 4 pieces
- Weight
- 2.2kg (unit) - 8.8kg (box)
- Dimension (L X W X H)
- 620mm x 125mm x 91mm
Battery and Leds
- Battery
- High-Temp LiFePO4 Lithium Battery
- Power Consumption
- 20W
- Charging Time
- 16 Hours
- Lens
- 50,000 Hours
- Lumens
- 2000lm
- Colour Temp
- 5000k
- Beam Angle
- 110 Degrees
Frequently asked questions
Is the 220EMBDIFF compliant with Australian Standards?
Yes. It meets AS/NZS 2293 and AS/NZS 60598.1, is EMC compliant, and carries a C0 D25 C90 C40 classification.
What operating mode does it use?
The 220EMBDIFF is a switch-maintained fitting operating on 220-260V; 50Hz with 20W power consumption.
Where can it be installed?
It is designed for surface mount installation, carries an IP20 ingress protection rating, and operates between 1° - 45° C.
How is it wired and installed?
Connection is via large terminal block, with manual test switch testing. Construction is powder coated metal body and prismatic.
What battery and light source does it use?
It uses a High-Temp LiFePO4 Lithium Battery with a 16 hours charging time and a 50,000 Hours rated LED life.
What are the dimensions and carton quantity?
Dimensions are 620mm x 125mm x 91mm (L x W x H), weight is 2.2kg (unit) - 8.8kg (box), supplied 4 pieces per carton.
Does it come in other finishes?
Yes — this family is also available as 440EMBDIFF (Standard).
