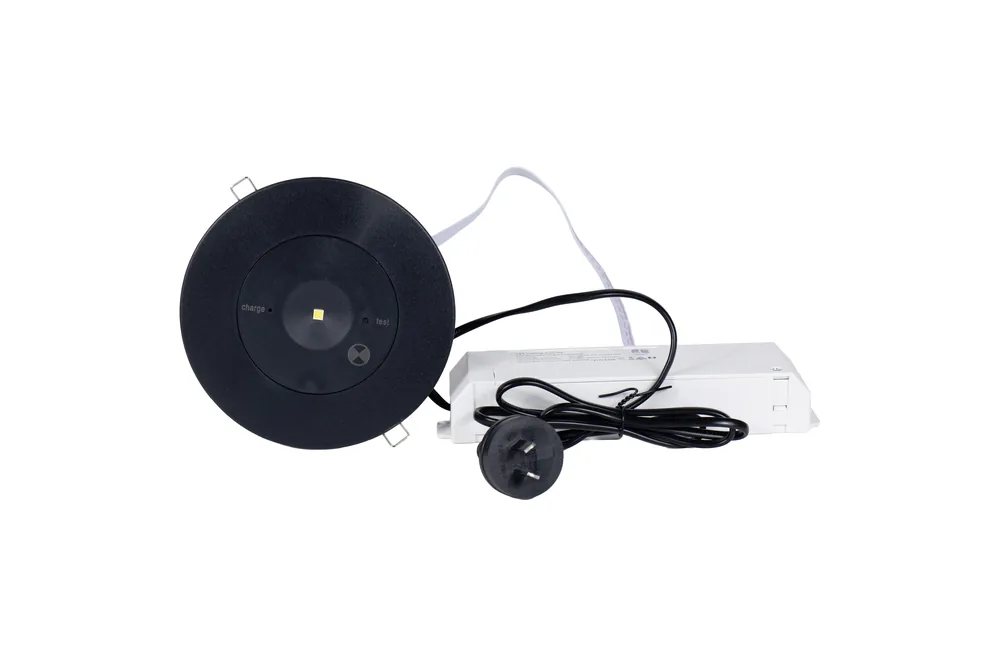

LED Recessed Emergency Luminaire Black Finish - D40 Classification
A recessed twin-disc emergency luminaire with a D40 classification for wider spacing and fewer fittings per project. Long-life LED and LiFePO4 battery deliver dependable emergency light where it is needed.
- Long-life LED rated to 50,000 hours
- High-temperature LiFePO4 lithium battery
- Non-Maintained operation
- IP20, recessed mount
- Fully compliant with AS/NZS 2293
- Black / theatre finish
Specifications & Downloads
Documentations & Downloads
Technical Specifications
- Operating Mode
- Non-Maintained
- Operating Voltage
- 220-260V; 50Hz
- Operating Temperature
- 1° - 45° C
- IP Rating
- IP20
- Wiring
- Flex and Plug
- Mounting Type
- Recessed Mount
- Testing System
- Manual Test Switch
- Construction
- Polycarbonate
- Cutout / Head Dia
- 65mm-80mm(S), 65mm-140mm(L)
- Classification
- C0 D40 C90 D40
- Standards
- AS/NZS 2293
- AS/NZS 60598.1
- EMC
Ordering Information
- Carton Qty
- 10 pieces
- Weight
- 0.6kg (unit) - 6kg (box)
- Dimension (L X W X H)
- 228mm x 43mm x 27mm - Control Pack; 84mm(S), 145mm(L) - Head Diameter
Battery and Leds
- Battery
- High-Temp LiFePO4 Lithium Battery
- Power Consumption
- 3W
- Charging Time
- 16 Hours
- Lens
- 50,000 Hours
- Replacement Battery
- BLITEL - LiFePO4 Lithium Battery, 3.2V 3200mAh
Frequently asked questions
Is the EMLITELBK compliant with Australian Standards?
Yes. It meets AS/NZS 2293 and AS/NZS 60598.1, is EMC compliant, and carries a C0 D40 C90 D40 classification.
What operating mode does it use?
The EMLITELBK is a non-maintained fitting operating on 220-260V; 50Hz with 3W power consumption.
Where can it be installed?
It is designed for recessed mount installation, carries an IP20 ingress protection rating, and operates between 1° - 45° C.
How is it wired and installed?
Connection is via flex and plug, with manual test switch testing. Construction is polycarbonate.
What battery and light source does it use?
It uses a High-Temp LiFePO4 Lithium Battery with a 16 hours charging time and a 50,000 Hours rated LED life. Replacement battery: BLITEL - LiFePO4 Lithium Battery, 3.2V 3200mAh.
What are the dimensions and carton quantity?
Dimensions are 228mm x 43mm x 27mm - Control Pack; 84mm(S), 145mm(L) - Head Diameter (L x W x H), weight is 0.6kg (unit) - 6kg (box), supplied 10 pieces per carton.
Does it come in other finishes?
Yes — this family is also available as EMLITEL (Standard).
