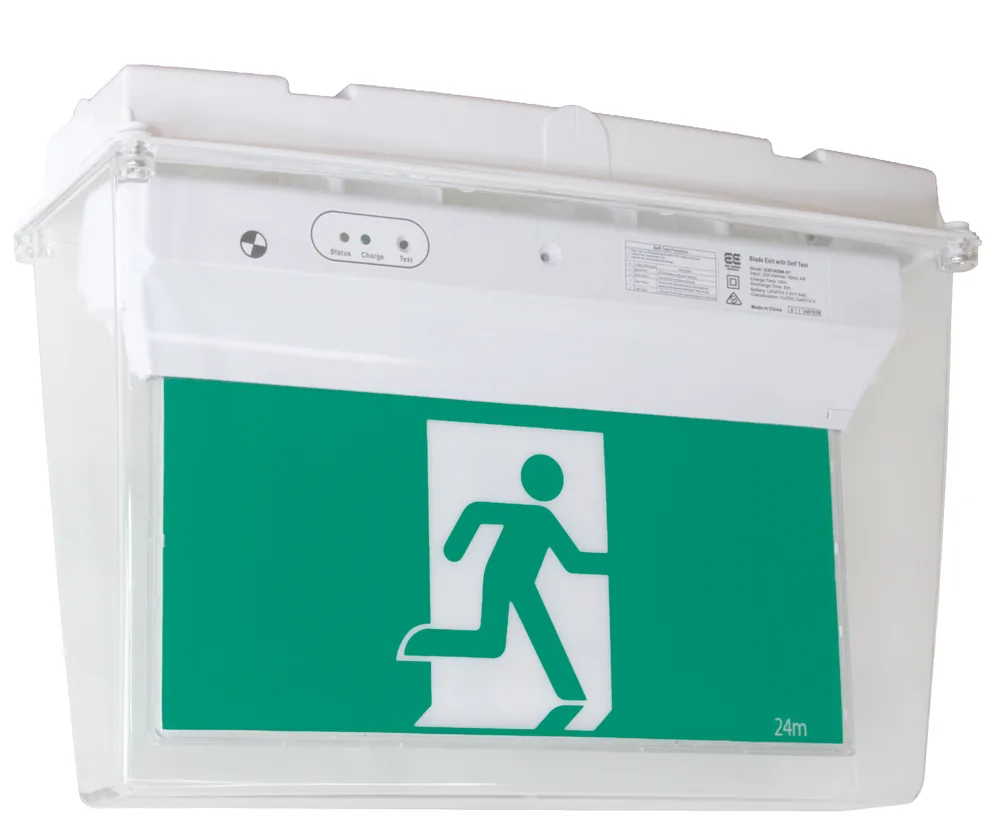

All-in-One Surface Mounted Easy Connect Blade LED Exit with Weatherproof Enclosure
A weatherproof fin blade exit sign for damp or outdoor areas that still call for an architectural finish. Sealed against moisture while retaining the slim profile, long-life LED and LiFePO4 battery.
- Long-life LED rated to 50,000 hours
- High-temperature LiFePO4 lithium battery
- 24m viewing distance
- Large terminal block for fast connection
- Maintained operation
- IP65, wall or ceiling surface mount
- Fully compliant with AS/NZS 2293
Specifications & Downloads
Documentations & Downloads
Technical Specifications
- Operating Mode
- Maintained
- Operating Voltage
- 220-260V; 50Hz
- Operating Temperature
- 1° - 45° C
- IP Rating
- IP65
- Wiring
- Large Terminal Block
- Mounting Type
- Wall or Ceiling Surface Mount
- Testing System
- Manual Test Switch
- Construction
- Polycarbonate Body and Acrylic Diffuser
- Classification
- C0 D5 C90 D2.5
- Standards
- AS/NZS 2293
- AS/NZS 60598.1
- EMC
Ordering Information
- Carton Qty
- 1 pieces
- Weight
- 2.8kg (unit) - 12kg (box)
- Dimension (L X W X H)
- 430mm x 160mm x 310mm
Battery and Leds
- Battery
- High-Temp LiFePO4 Lithium Battery
- Power Consumption
- 4W
- Charging Time
- 16 Hours
- Lens
- 50,000 Hours
- Viewing Distance
- 24 Metres
- Replacement Battery
- BFINSM - LiFePO4 Lithium Battery, 3.2V 1500mAh
Frequently asked questions
Is the EXFINWP compliant with Australian Standards?
Yes. It meets AS/NZS 2293 and AS/NZS 60598.1, is EMC compliant, and carries a C0 D5 C90 D2.5 classification with a 24 metres viewing distance.
What operating mode does it use?
The EXFINWP is a maintained fitting operating on 220-260V; 50Hz with 4W power consumption.
Where can it be installed?
It is designed for wall or ceiling surface mount installation, carries an IP65 ingress protection rating, and operates between 1° - 45° C.
How is it wired and installed?
Connection is via large terminal block, with manual test switch testing. Construction is polycarbonate body and acrylic diffuser.
What battery and light source does it use?
It uses a High-Temp LiFePO4 Lithium Battery with a 16 hours charging time and a 50,000 Hours rated LED life. Replacement battery: BFINSM - LiFePO4 Lithium Battery, 3.2V 1500mAh.
What are the dimensions and carton quantity?
Dimensions are 430mm x 160mm x 310mm (L x W x H), weight is 2.8kg (unit) - 12kg (box), supplied 1 pieces per carton.
Does it come in other finishes?
Yes — this family is also available as EXFINWP-ST (Self Test).
