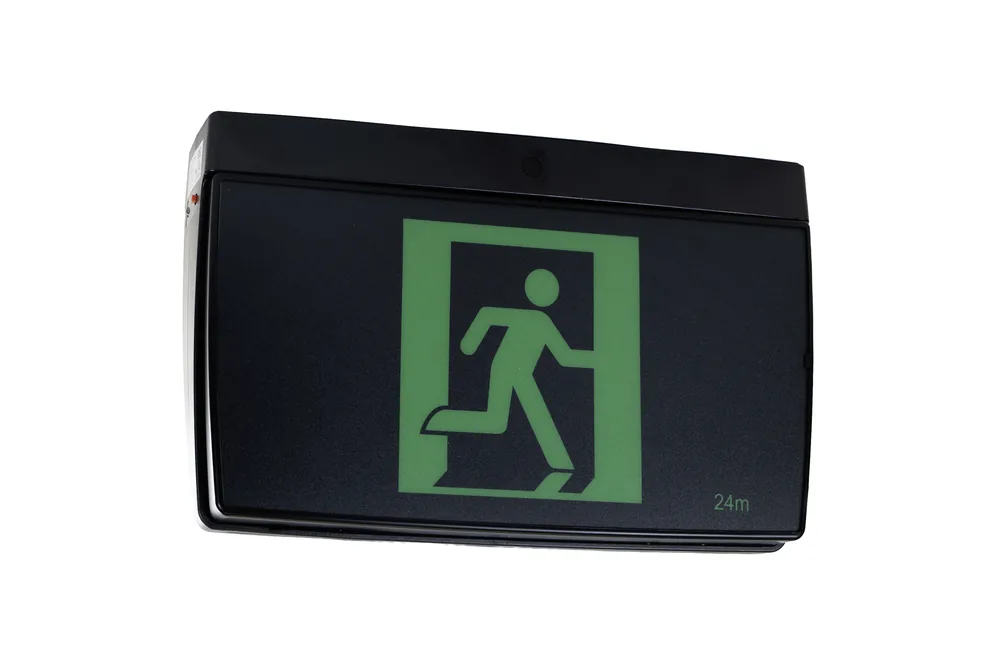

All-in-One Easy Connect Surface Mount LED Black Exit
Our flagship lithium-powered exit light. The all-in-one PC body houses a long-life LED that is reliable, energy efficient and easy on the environment. Mount it on a wall or ceiling, or suspend it by chain or rod, to suit almost any space. The large terminal block makes connection fast and simple.
- Long-life LED rated to 50,000 hours
- High-temperature LiFePO4 lithium battery
- 24m viewing distance
- Large terminal block for fast connection
- Maintained operation
- IP20, wall or ceiling surface mount
- Fully compliant with AS/NZS 2293
- Black / theatre finish
Specifications & Downloads
Documentations & Downloads
Technical Specifications
- Operating Mode
- Maintained
- Operating Voltage
- 220-260V; 50Hz
- Operating Temperature
- 1° - 45° C
- IP Rating
- IP20
- Wiring
- Large Terminal Block
- Mounting Type
- Wall or Ceiling Surface Mount
- Testing System
- Manual Test Switch
- Construction
- Polycarbonate Body and Diffuser
- Classification
- C0 N/A C90 N/A
- Standards
- AS/NZS 2293
- AS/NZS 60598.1
- EMC
Ordering Information
- Carton Qty
- 5 pieces
- Weight
- 1.5kg (unit) - 7.5kg (box)
- Dimension (L X W X H)
- 355mm x 80mm x 215mm
Battery and Leds
- Battery
- High-Temp LiFePO4 Lithium Battery
- Power Consumption
- 3W
- Charging Time
- 16 Hours
- Lens
- 50,000 Hours
- Viewing Distance
- 24 Metres
- Replacement Battery
- BLEDL - LiFePO4 Lithium Battery, 3.2V 1600mAh
Frequently asked questions
Is the EXLEDLBK compliant with Australian Standards?
Yes. It meets AS/NZS 2293 and AS/NZS 60598.1, is EMC compliant, and carries a C0 N/A C90 N/A classification with a 24 metres viewing distance.
What operating mode does it use?
The EXLEDLBK is a maintained fitting operating on 220-260V; 50Hz with 3W power consumption.
Where can it be installed?
It is designed for wall or ceiling surface mount installation, carries an IP20 ingress protection rating, and operates between 1° - 45° C.
How is it wired and installed?
Connection is via large terminal block, with manual test switch testing. Construction is polycarbonate body and diffuser.
What battery and light source does it use?
It uses a High-Temp LiFePO4 Lithium Battery with a 16 hours charging time and a 50,000 Hours rated LED life. Replacement battery: BLEDL - LiFePO4 Lithium Battery, 3.2V 1600mAh.
What are the dimensions and carton quantity?
Dimensions are 355mm x 80mm x 215mm (L x W x H), weight is 1.5kg (unit) - 7.5kg (box), supplied 5 pieces per carton.
Does it come in other finishes?
Yes — this family is also available as EXLEDL (Standard).
