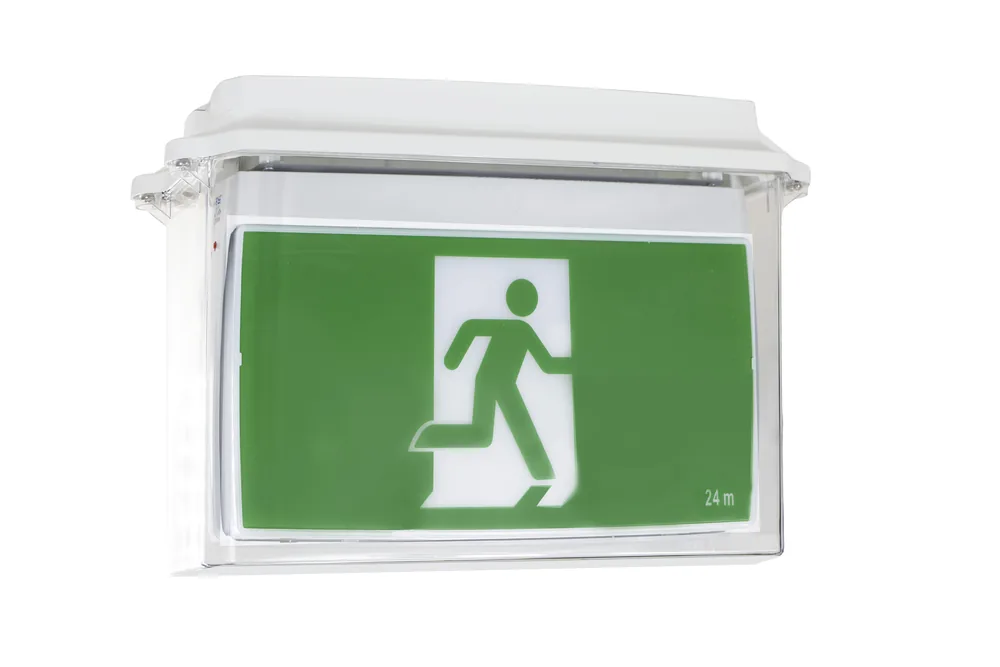

All-in-One Easy Connect Surface Mount LED Weatherproof Exit With Weatherproof Enclosure
The weatherproof version of our flagship exit sign, sealed to IP65 for outdoor walkways, washdown areas and damp environments. It keeps the same long-life LED and LiFePO4 lithium battery, so exit paths stay clearly marked wherever the fitting is installed.
- Long-life LED rated to 50,000 hours
- High-temperature LiFePO4 lithium battery
- 24m viewing distance
- Large terminal block for fast connection
- Maintained operation
- IP65, wall or ceiling surface mount
- Fully compliant with AS/NZS 2293
Specifications & Downloads
Documentations & Downloads
Technical Specifications
- Operating Mode
- Maintained
- Operating Voltage
- 220-260V; 50Hz
- Operating Temperature
- 1° - 45° C
- IP Rating
- IP65
- Wiring
- Large Terminal Block
- Mounting Type
- Wall or Ceiling Surface Mount
- Testing System
- Manual Test Switch
- Construction
- Polycarbonate Body and Diffuser
- Classification
- C0 D3.2 C90 D2
- Standards
- AS/NZS 2293
- AS/NZS 60598.1
- EMC
Ordering Information
- Carton Qty
- 3 pieces
- Weight
- 2.6kg (unit) - 7.5kg (box)
- Dimension (L X W X H)
- 442mm x 141mm x 270mm
Battery and Leds
- Battery
- High-Temp LiFePO4 Lithium Battery
- Power Consumption
- 3W
- Charging Time
- 16 Hours
- Lens
- 50,000 Hours
- Viewing Distance
- 24 Metres
- Replacement Battery
- BLEDL - LiFePO4 Lithium Battery, 3.2V 1600mAh
Frequently asked questions
Is the EXLEDLWP compliant with Australian Standards?
Yes. It meets AS/NZS 2293 and AS/NZS 60598.1, is EMC compliant, and carries a C0 D3.2 C90 D2 classification with a 24 metres viewing distance.
What operating mode does it use?
The EXLEDLWP is a maintained fitting operating on 220-260V; 50Hz with 3W power consumption.
Where can it be installed?
It is designed for wall or ceiling surface mount installation, carries an IP65 ingress protection rating, and operates between 1° - 45° C.
How is it wired and installed?
Connection is via large terminal block, with manual test switch testing. Construction is polycarbonate body and diffuser.
What battery and light source does it use?
It uses a High-Temp LiFePO4 Lithium Battery with a 16 hours charging time and a 50,000 Hours rated LED life. Replacement battery: BLEDL - LiFePO4 Lithium Battery, 3.2V 1600mAh.
What are the dimensions and carton quantity?
Dimensions are 442mm x 141mm x 270mm (L x W x H), weight is 2.6kg (unit) - 7.5kg (box), supplied 3 pieces per carton.
