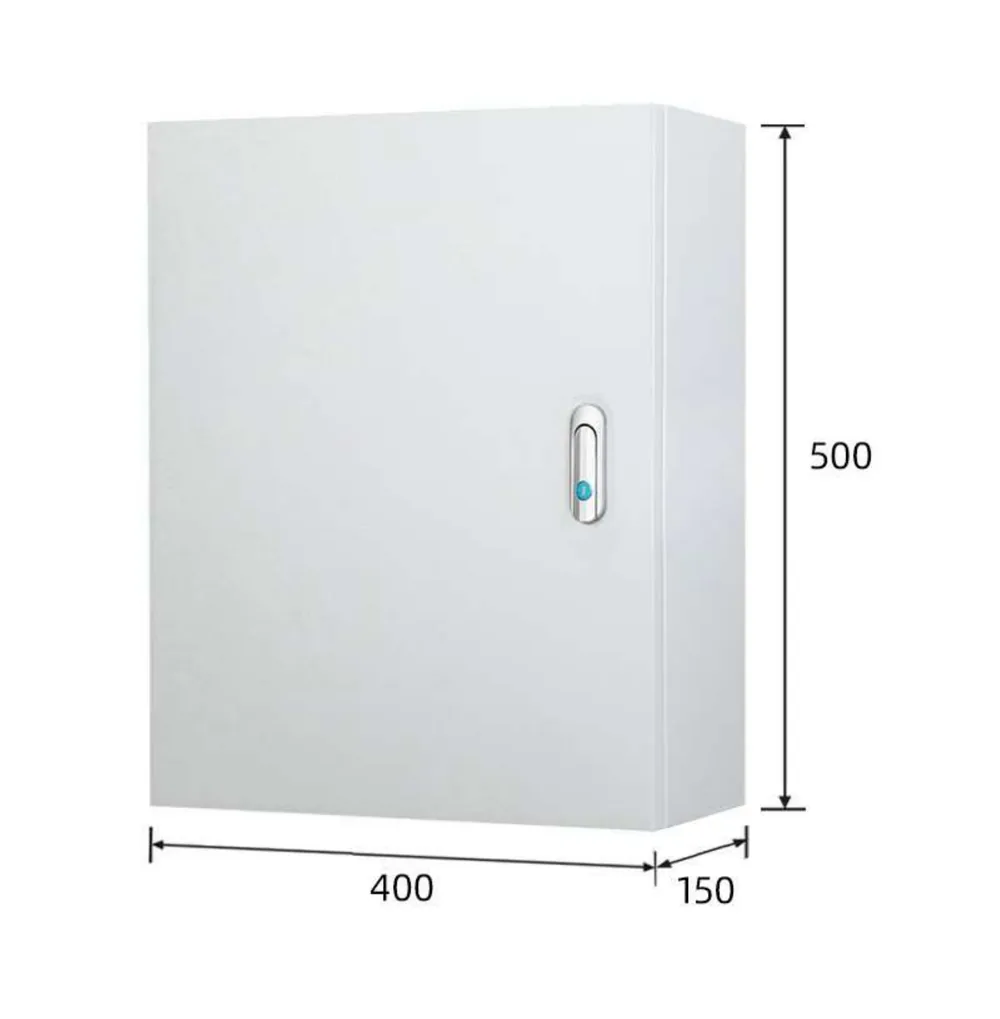

Temporary 48V DC 2 x 7A 350W Power Supply with Weatherproof Enclosure
SKU: TBWP48V14A-LVOthers48V Temporary Power Supply
Model
The weatherproof dual-output power supply for the E&E 48V SELV temporary lighting system. It converts mains power to safe 48V DC across two 7A outputs. A switch turns off general lighting while all connected emergency batteries keep charging.
- Converts 220-240Vac mains to 48V DC
- Two 7A outputs, 700W rated power
- Switch for general lighting, emergency batteries keep charging
- Adjustable output 43.2V to 52.8V
- Weatherproof metal enclosure, surface mount
Specifications & Downloads
Documentations & Downloads
Technical Specifications
- Operating Voltage
- 220-240Vac; 50Hz
- Operating Temperature
- 1° - 45° C
- Mounting Type
- Surface Mount
- Construction
- Metal Enclosure
Ordering Information
- Carton Qty
- 1 pieces
- Weight
- 14kg (Weatherproof Enclosure)
- Dimension (L X W X H)
- 500mm x 400mm x 150mm
Battery and Leds
- Power Consumption
- 700W
Frequently asked questions
Where can it be installed?
It is designed for surface mount installation, and operates between 1° - 45° C.
What are the dimensions and carton quantity?
Dimensions are 500mm x 400mm x 150mm (L x W x H), weight is 14kg (Weatherproof Enclosure), supplied 1 pieces per carton.
Does it come in other finishes?
Yes — this family is also available as TBWP48V7A-LV (Standard), T48V7A-LV (Standard).
