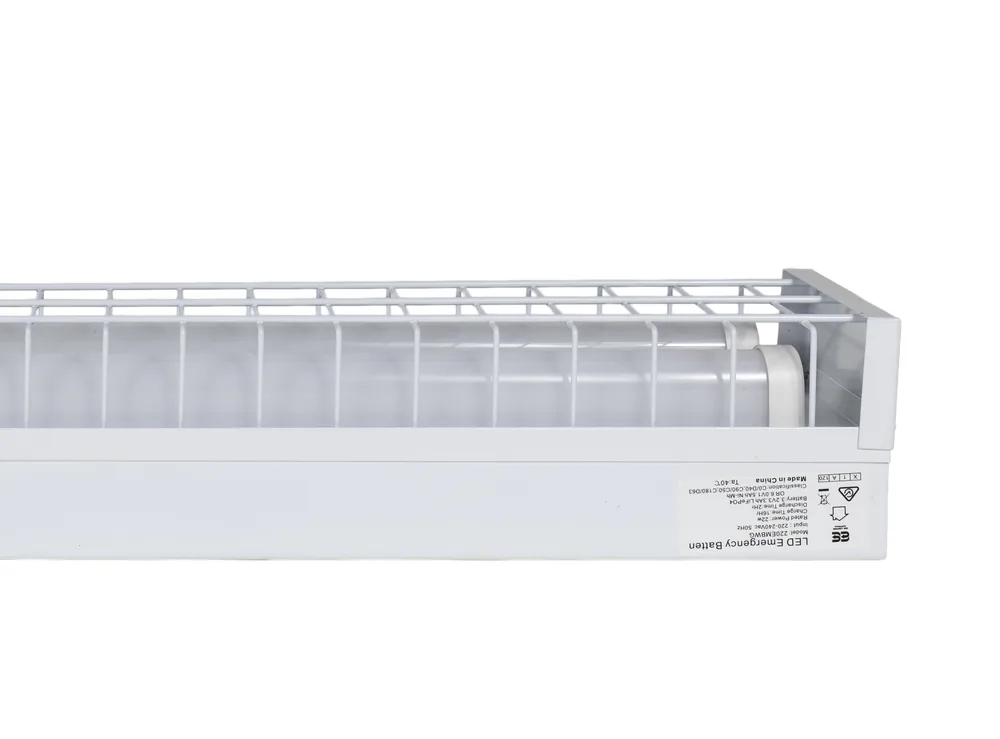

40W LED 1200mm Emergency Wire Guard Batten
An LED emergency wide batten fitted with a wire guard to protect the fitting in warehouses, plant rooms and back-of-house areas. Tough general lighting with built-in emergency backup.
- Long-life LED rated to 50,000 hours
- High-temperature LiFePO4 lithium battery
- 4000 lm light output
- Large terminal block for fast connection
- Switch-Maintained operation
- IP20, surface mount
- Fully compliant with AS/NZS 2293
Specifications & Downloads
Documentations & Downloads
Technical Specifications
- Operating Mode
- Switch-Maintained
- Operating Voltage
- 220-260V; 50Hz
- Operating Temperature
- 1° - 45° C
- IP Rating
- IP20
- Wiring
- Large Terminal Block
- Mounting Type
- Surface Mount
- Testing System
- Manual Test Switch
- Construction
- Powder Coated Metal Body and Wire Guard
- Power Factor
- >0.95
- Classification
- C0 D40 C90 C63
- Standards
- AS/NZS 2293
- AS/NZS 60598.1
- EMC
Ordering Information
- Carton Qty
- 4 pieces
- Weight
- 4kg (unit) - 16kg (box)
- Dimension (L X W X H)
- 1230mm x 125mm x 91mm
Battery and Leds
- Battery
- High-Temp LiFePO4 Lithium Battery
- Power Consumption
- 40W
- Charging Time
- 16 Hours
- Lens
- 50,000 Hours
- Lumens
- 4000lm
- Colour Temp
- 5000k
- Beam Angle
- 110 Degrees
Frequently asked questions
Is the 440EMBWG compliant with Australian Standards?
Yes. It meets AS/NZS 2293 and AS/NZS 60598.1, is EMC compliant, and carries a C0 D40 C90 C63 classification.
What operating mode does it use?
The 440EMBWG is a switch-maintained fitting operating on 220-260V; 50Hz with 40W power consumption.
Where can it be installed?
It is designed for surface mount installation, carries an IP20 ingress protection rating, and operates between 1° - 45° C.
How is it wired and installed?
Connection is via large terminal block, with manual test switch testing. Construction is powder coated metal body and wire guard.
What battery and light source does it use?
It uses a High-Temp LiFePO4 Lithium Battery with a 16 hours charging time and a 50,000 Hours rated LED life.
What are the dimensions and carton quantity?
Dimensions are 1230mm x 125mm x 91mm (L x W x H), weight is 4kg (unit) - 16kg (box), supplied 4 pieces per carton.
Does it come in other finishes?
Yes — this family is also available as 220EMBWG (Standard).
