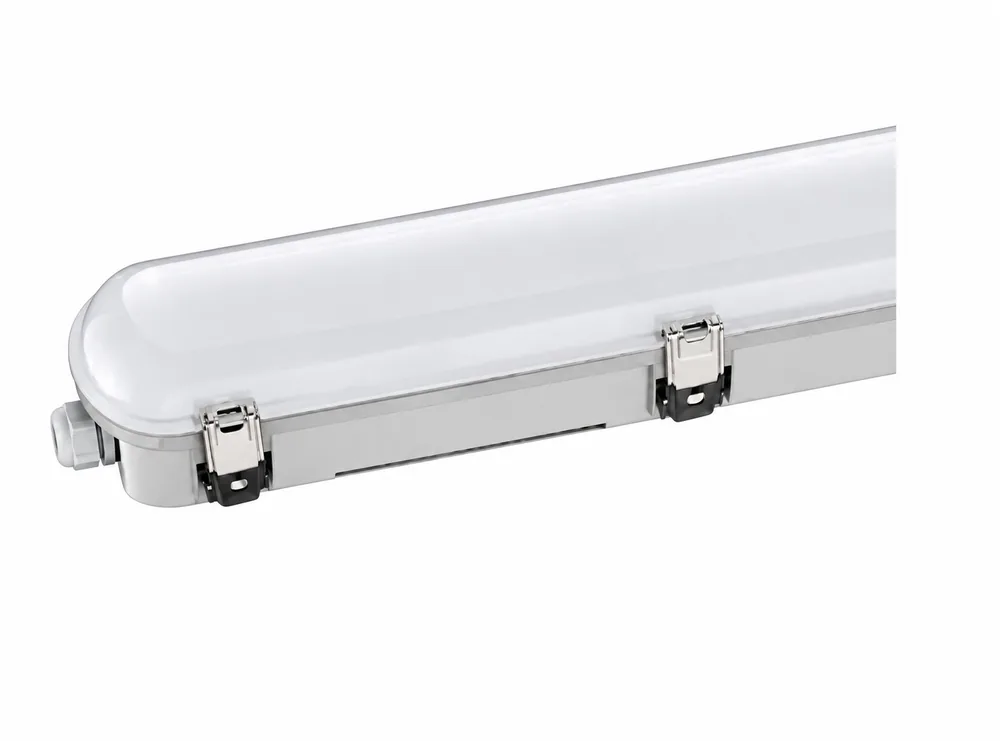

18W LED 600mm Emergency Temporary 48V ELV Weatherproof Batten
Model
A 600mm emergency weatherproof batten for the E&E 48V SELV temporary lighting system. It gives general site lighting on the switched circuit and emergency lighting from its LiFePO4 battery, which keeps charging when general lighting is switched off. Keyed plug-and-play connectors let you move it as the site changes, with no rewiring.
- 48V DC SELV plug-and-play connection
- Long-life LED rated to 50,000 hours
- High-temperature LiFePO4 lithium battery
- 2400 lm light output
- Switch-Maintained operation
- IP65 and IK10, surface mount
- Fully compliant with AS/NZS 2293
Specifications & Downloads
Documentations & Downloads
Technical Specifications
- Operating Mode
- Switch-Maintained
- Operating Voltage
- 48V DC
- Operating Temperature
- 1° - 45° C
- IP Rating
- IP65
- IK Rating
- IK10
- Wiring
- Weatherproof Circular Connector
- Mounting Type
- Surface Mount
- Testing System
- Manual Test Switch
- Construction
- Polycarbonate Body and Diffuser
- Power Factor
- >0.95
- Classification
- C0 D80 C90 D50
- Standards
- AS/NZS 2293
- AS/NZS 60598.1
- EMC
Ordering Information
- Carton Qty
- 6 pieces
- Weight
- 1.5kg (unit) - 9kg (box)
- Dimension (L X W X H)
- 670mm x 95mm x 85mm
Battery and Leds
- Battery
- High-Temp LiFePO4 Lithium Battery
- Power Consumption
- 18W
- Charging Time
- 16 Hours
- LED Rated Life
- 50,000 Hours
- Lumens
- 2400lm
- Colour Temp
- 4000k
- Beam Angle
- 110 Degrees
- CRI
- <80
- Replacement Battery
- B220WP-LV - LiFePO4 Lithium Battery, 6.4V; 1600mAh
Frequently asked questions
Is the TEMB220WP-LV compliant with Australian Standards?
Yes. It meets AS/NZS 2293 and AS/NZS 60598.1, is EMC compliant, and carries a C0 D80 C90 D50 classification.
What operating mode does it use?
The TEMB220WP-LV is a switch-maintained fitting operating on 48V DC with 18W power consumption.
Where can it be installed?
It is designed for surface mount installation, carries an IP65 ingress protection rating, and operates between 1° - 45° C.
How is it wired and installed?
Connection is via weatherproof circular connector, with manual test switch testing. Construction is polycarbonate body and diffuser.
What battery and light source does it use?
It uses a High-Temp LiFePO4 Lithium Battery with a 16 hours charging time and a 50,000 Hours rated LED life. Replacement battery: B220WP-LV - LiFePO4 Lithium Battery, 6.4V; 1600mAh.
What are the dimensions and carton quantity?
Dimensions are 670mm x 95mm x 85mm (L x W x H), weight is 1.5kg (unit) - 9kg (box), supplied 6 pieces per carton.
Does it come in other finishes?
Yes — this family is also available as TEMB440WP-LV (Standard).
