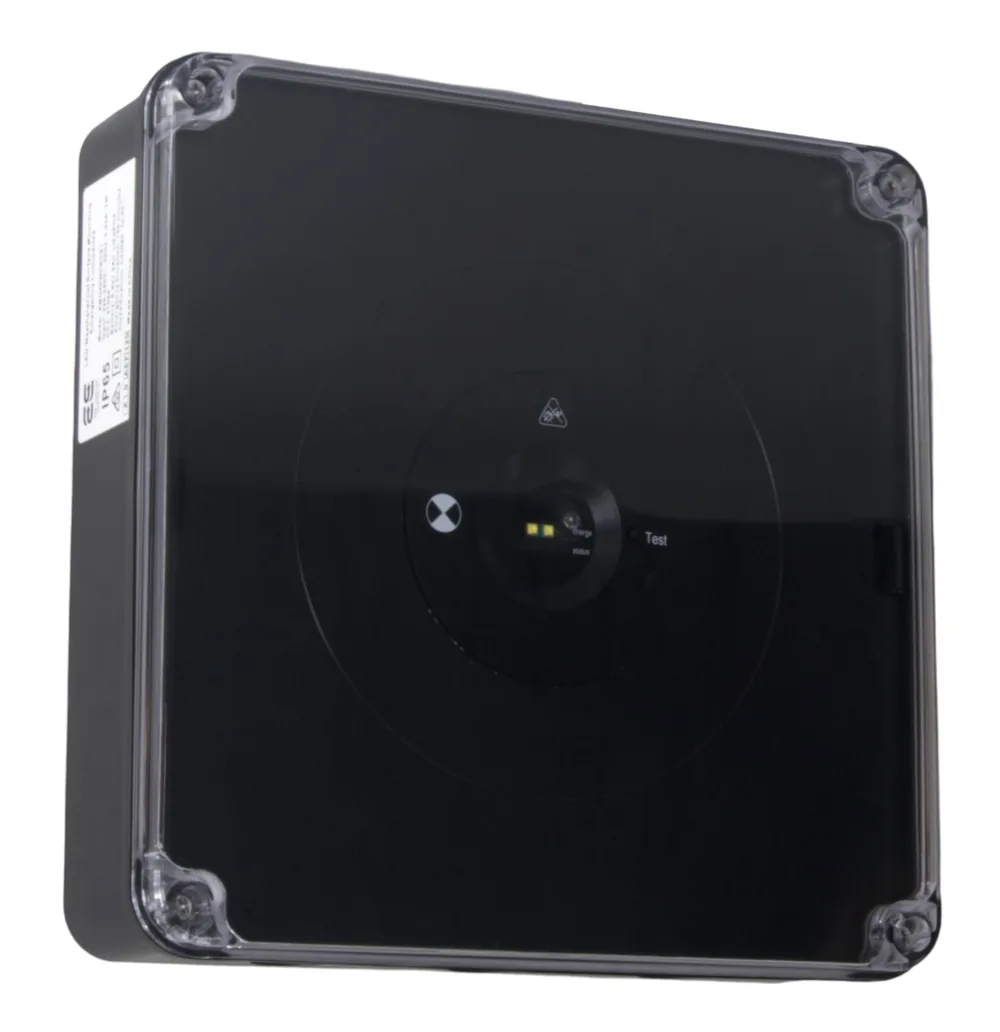

EMD80WPBK- LED Surface Mounted Weatherproof ST Emergency Luminaire Black D80 Classification with Self Test
A weatherproof D80 emergency luminaire sealed to IP65 for demanding, damp or outdoor high-output applications. Combines wide D80 spacing with robust environmental protection.
- Long-life LED rated to 50,000 hours
- High-temperature LiFePO4 lithium battery
- Large terminal block for fast connection
- Non-Maintained operation
- IP65, surface mounted
- Fully compliant with AS/NZS 2293
- Self-test with automatic result logging
- Black / theatre finish
Specifications & Downloads
Documentations & Downloads
Technical Specifications
- Operating Mode
- Non-Maintained
- Operating Voltage
- 220-260V; 50Hz
- Operating Temperature
- 1° - 45° C
- IP Rating
- IP65
- Wiring
- Large Terminal Block
- Mounting Type
- Surface Mounted
- Testing System
- Self Test
- Construction
- Polycarbonate
- Classification
- C0 D80 C90 D80
- Standards
- AS/NZS 2293
- AS/NZS 60598.1
- EMC
Ordering Information
- Carton Qty
- 8 pieces
- Weight
- 1.15kg (unit) - 10kg (box)
- Dimension (L X W X H)
- 225mm x 225mm x 55mm
Battery and Leds
- Battery
- High-Temp LiFePO4 Lithium Battery
- Power Consumption
- 4W
- Charging Time
- 16 Hours
- Lens
- 50,000 Hours
- Replacement Battery
- BD80 - LiFePO4 Lithium Battery, 6.4V 3200mAh
Frequently asked questions
Is the EMD80WPBK-ST compliant with Australian Standards?
Yes. It meets AS/NZS 2293 and AS/NZS 60598.1, is EMC compliant, and carries a C0 D80 C90 D80 classification.
What operating mode does it use?
The EMD80WPBK-ST is a non-maintained fitting operating on 220-260V; 50Hz with 4W power consumption.
Where can it be installed?
It is designed for surface mounted installation, carries an IP65 ingress protection rating, and operates between 1° - 45° C.
How is it wired and installed?
Connection is via large terminal block, with self test testing. Construction is polycarbonate.
What battery and light source does it use?
It uses a High-Temp LiFePO4 Lithium Battery with a 16 hours charging time and a 50,000 Hours rated LED life. Replacement battery: BD80 - LiFePO4 Lithium Battery, 6.4V 3200mAh.
What are the dimensions and carton quantity?
Dimensions are 225mm x 225mm x 55mm (L x W x H), weight is 1.15kg (unit) - 10kg (box), supplied 8 pieces per carton.
Does it come in other finishes?
Yes — this family is also available as EMD80WP (Standard), EMD80WP-ST (Self Test), EMD80WPBK (Black), EMD80WPRB (Remote Box).
