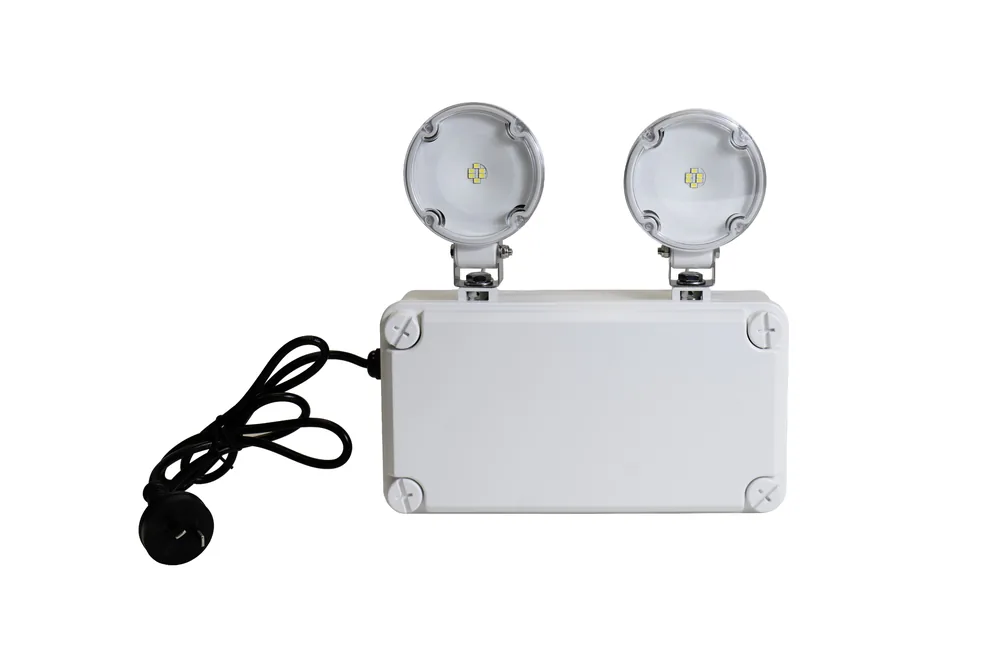

2 x 3W LED Emergency Weatherproof Floodlight
A weatherproof emergency floodlight with twin 3W LED heads for high-output spill lighting in car parks, plant rooms and outdoor areas. Sealed to IP65 and supplied with flex and plug for straightforward installation.
- Long-life LED rated to 50,000 hours
- High-temperature LiFePO4 lithium battery
- 675 lm light output
- Non-Maintained operation
- IP65, surface mount
- Fully compliant with AS/NZS 2293
Specifications & Downloads
Documentations & Downloads
Technical Specifications
- Operating Mode
- Non-Maintained
- Operating Voltage
- 220-260V; 50Hz
- Operating Temperature
- 1° - 45° C
- IP Rating
- IP65
- Wiring
- Flex and Plug
- Mounting Type
- Surface Mount
- Testing System
- Manual Test Switch
- Construction
- Polycarbonate Body
- Classification
- C0 N/A C90 N/A
- Standards
- AS/NZS 2293
- AS/NZS 60598.1
- EMC
Ordering Information
- Carton Qty
- 5 pieces
- Weight
- 1.8kg (unit) - 9kg (box)
- Dimension (L X W X H)
- 248mm x 82mm x 248mm
Battery and Leds
- Battery
- High-Temp LiFePO4 Lithium Battery
- Power Consumption
- 2 x 3W
- Charging Time
- 16 Hours
- Lens
- 50,000 Hours
- Lumens
- 675lm
- Colour Temp
- 5000k
- Replacement Battery
- BFLOODWP - LiFePO4 Lithium Battery, 6.4V; 3000mAh
Frequently asked questions
Is the EMFLOODWP compliant with Australian Standards?
Yes. It meets AS/NZS 2293 and AS/NZS 60598.1, is EMC compliant, and carries a C0 N/A C90 N/A classification.
What operating mode does it use?
The EMFLOODWP is a non-maintained fitting operating on 220-260V; 50Hz with 2 x 3W power consumption.
Where can it be installed?
It is designed for surface mount installation, carries an IP65 ingress protection rating, and operates between 1° - 45° C.
How is it wired and installed?
Connection is via flex and plug, with manual test switch testing. Construction is polycarbonate body.
What battery and light source does it use?
It uses a High-Temp LiFePO4 Lithium Battery with a 16 hours charging time and a 50,000 Hours rated LED life. Replacement battery: BFLOODWP - LiFePO4 Lithium Battery, 6.4V; 3000mAh.
What are the dimensions and carton quantity?
Dimensions are 248mm x 82mm x 248mm (L x W x H), weight is 1.8kg (unit) - 9kg (box), supplied 5 pieces per carton.
Does it come in other finishes?
Yes — this family is also available as EMFLOODWP-ST (Self Test), EMFLOODWPBK (Black), EMFLOODWPBK-ST (Black Self Test), EMFLOODWPRB (Remote Box).
