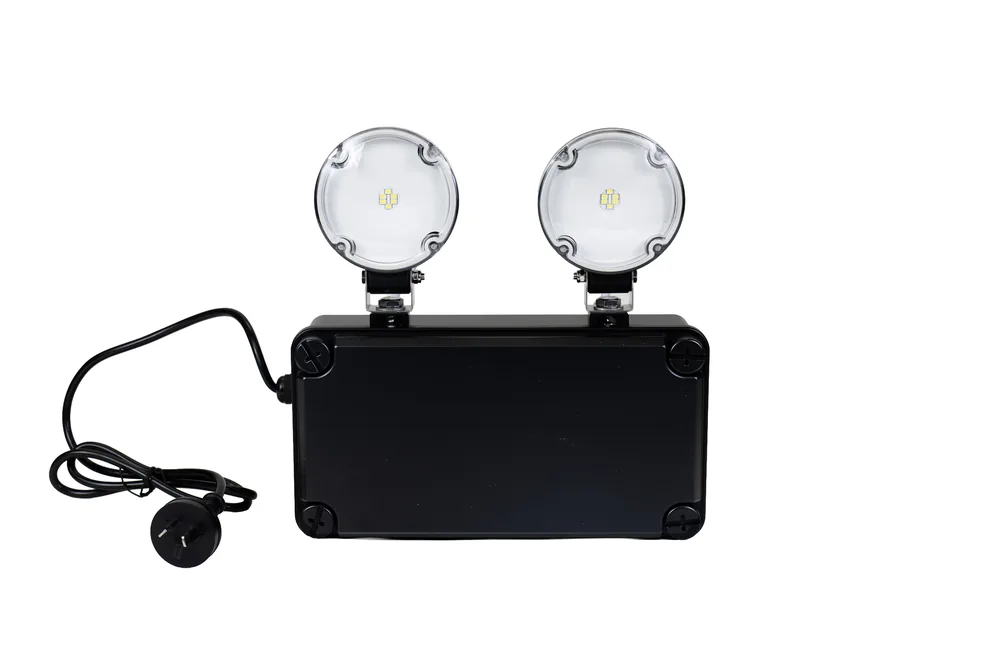

2 x 3W LED Emergency Weatherproof Black Self Test Floodlight
A weatherproof emergency floodlight with twin 3W LED heads for high-output spill lighting in car parks, plant rooms and outdoor areas. Sealed to IP65 and supplied with flex and plug for straightforward installation.
- Long-life LED rated to 50,000 hours
- High-temperature LiFePO4 lithium battery
- 675 lm light output
- Non-Maintained operation
- IP65, surface mount
- Fully compliant with AS/NZS 2293
- Self-test with automatic result logging
- Black / theatre finish
Specifications & Downloads
Documentations & Downloads
Technical Specifications
- Operating Mode
- Non-Maintained
- Operating Voltage
- 220-260V; 50Hz
- Operating Temperature
- 1° - 45° C
- IP Rating
- IP65
- Wiring
- Flex and Plug
- Mounting Type
- Surface Mount
- Testing System
- Self Test
- Construction
- Polycarbonate Body
- Classification
- C0 N/A C90 N/A
- Standards
- AS/NZS 2293
- AS/NZS 60598.1
- EMC
Ordering Information
- Carton Qty
- 5 pieces
- Weight
- 1.8kg (unit) - 9kg (box)
- Dimension (L X W X H)
- 248mm x 82mm x 248mm
Battery and Leds
- Battery
- High-Temp LiFePO4 Lithium Battery
- Power Consumption
- 2 x 3W
- Charging Time
- 16 Hours
- Lens
- 50,000 Hours
- Lumens
- 675lm
- Colour Temp
- 5000k
- Replacement Battery
- BFLOODWP - LiFePO4 Lithium Battery, 6.4V; 3000mAh
Frequently asked questions
Is the EMFLOODWPBK-ST compliant with Australian Standards?
Yes. It meets AS/NZS 2293 and AS/NZS 60598.1, is EMC compliant, and carries a C0 N/A C90 N/A classification.
What operating mode does it use?
The EMFLOODWPBK-ST is a non-maintained fitting operating on 220-260V; 50Hz with 2 x 3W power consumption.
Where can it be installed?
It is designed for surface mount installation, carries an IP65 ingress protection rating, and operates between 1° - 45° C.
How is it wired and installed?
Connection is via flex and plug, with self test testing. Construction is polycarbonate body.
What battery and light source does it use?
It uses a High-Temp LiFePO4 Lithium Battery with a 16 hours charging time and a 50,000 Hours rated LED life. Replacement battery: BFLOODWP - LiFePO4 Lithium Battery, 6.4V; 3000mAh.
What are the dimensions and carton quantity?
Dimensions are 248mm x 82mm x 248mm (L x W x H), weight is 1.8kg (unit) - 9kg (box), supplied 5 pieces per carton.
Does it come in other finishes?
Yes — this family is also available as EMFLOODWP (Standard), EMFLOODWP-ST (Self Test), EMFLOODWPBK (Black), EMFLOODWPRB (Remote Box).
