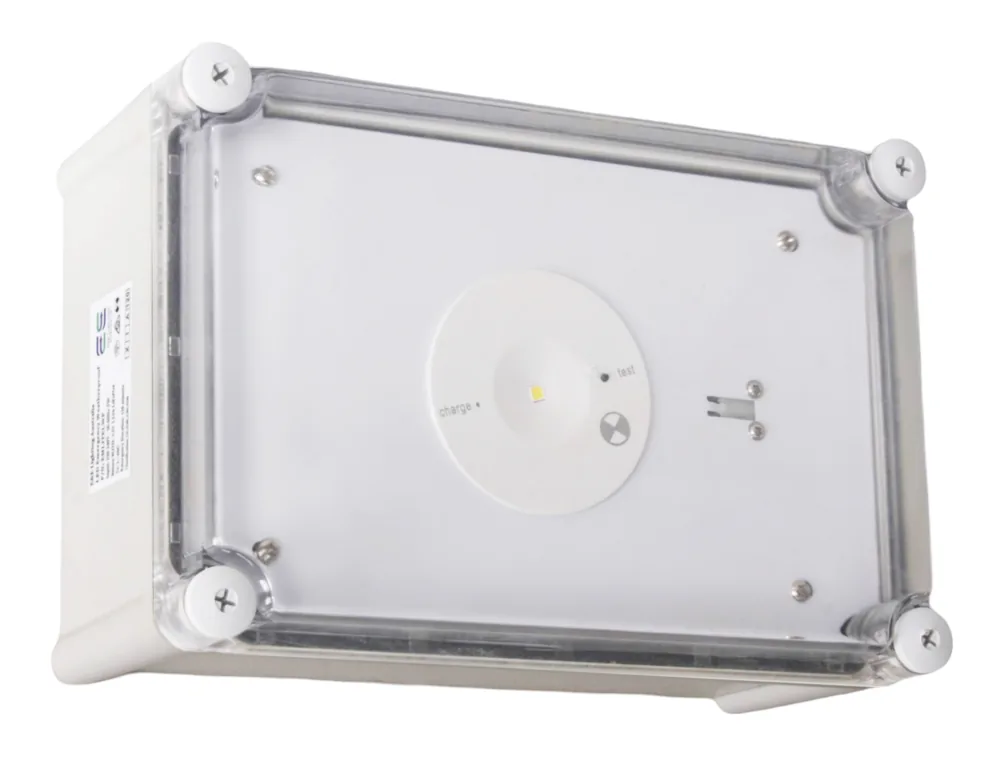

LED Surface Mounted Freezer Emergency Weatherproof Luminaire with Remote Box D40 Classification
A weatherproof surface-mount emergency luminaire rated to IP65, for damp, outdoor and washdown areas. The sealed D40 optic keeps escape routes lit where moisture rules out a standard fitting.
- Long-life LED rated to 50,000 hours
- High-temperature LiFePO4 lithium battery
- Large terminal block for fast connection
- Non-Maintained operation
- IP65, surface mount
- Fully compliant with AS/NZS 2293
- Freezer and cold room rated
Specifications & Downloads
Documentations & Downloads
Technical Specifications
- Operating Mode
- Non-Maintained
- Operating Voltage
- 220-260V; 50Hz
- Operating Temperature
- -25° - 45° C
- IP Rating
- IP65
- Wiring
- Large Terminal Block
- Mounting Type
- Surface Mount
- Testing System
- Manual Test Switch
- Construction
- Polycarbonate Body
- Classification
- C0 D40 C90 D40
- Standards
- AS/NZS 2293
- AS/NZS 60598.1
- EMC
Ordering Information
- Carton Qty
- 1 pieces
- Weight
- 1.8kg (Freezer Unit), 2.2kg (External Unit)
- Dimension (L X W X H)
- 270mm x 190mm x 130mm (Freezer Unit) 380mm x 190mm x 130mm (External Unit)
Battery and Leds
- Battery
- High-Temp LiFePO4 Lithium Battery
- Power Consumption
- 3W
- Charging Time
- 16 Hours
- Lens
- 50,000 Hours
- Replacement Battery
- BLITEL - LiFePO4 Lithium Battery, 3.2V 3200mAh
Frequently asked questions
Is the EMLITELWPRB compliant with Australian Standards?
Yes. It meets AS/NZS 2293 and AS/NZS 60598.1, is EMC compliant, and carries a C0 D40 C90 D40 classification.
What operating mode does it use?
The EMLITELWPRB is a non-maintained fitting operating on 220-260V; 50Hz with 3W power consumption.
Where can it be installed?
It is designed for surface mount installation, carries an IP65 ingress protection rating, and operates between -25° - 45° C.
How is it wired and installed?
Connection is via large terminal block, with manual test switch testing. Construction is polycarbonate body.
What battery and light source does it use?
It uses a High-Temp LiFePO4 Lithium Battery with a 16 hours charging time and a 50,000 Hours rated LED life. Replacement battery: BLITEL - LiFePO4 Lithium Battery, 3.2V 3200mAh.
What are the dimensions and carton quantity?
Dimensions are 270mm x 190mm x 130mm (Freezer Unit) 380mm x 190mm x 130mm (External Unit) (L x W x H), weight is 1.8kg (Freezer Unit), 2.2kg (External Unit), supplied 1 pieces per carton.
Does it come in other finishes?
Yes — this family is also available as EMLITELWP (Standard).
