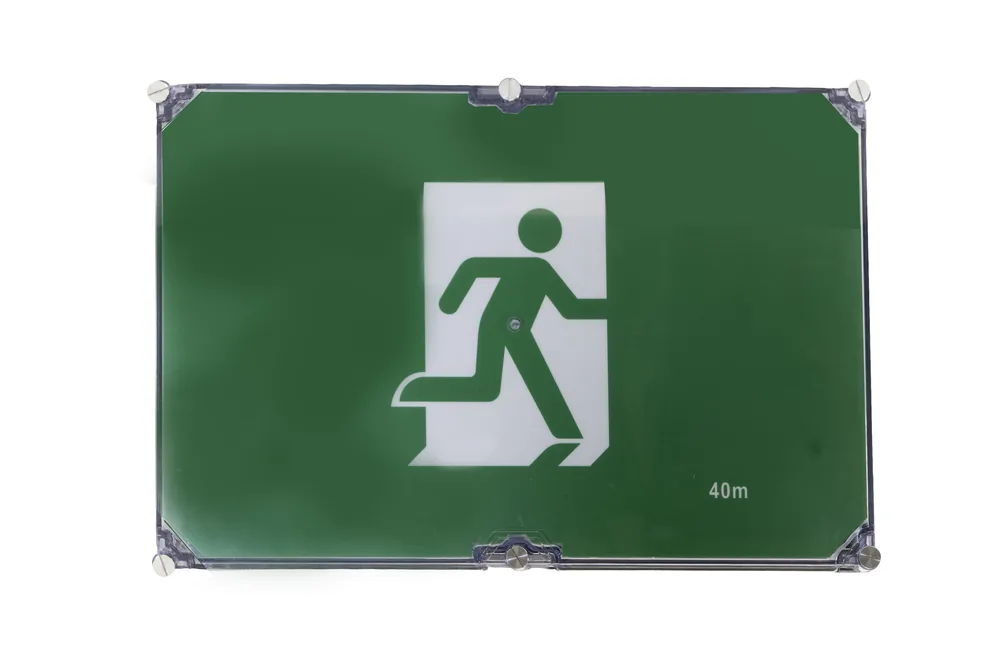

LED Wall Mount 40M Weatherproof Jumbo Self Test Exit
The weatherproof jumbo exit sign, combining the 40 metre viewing distance with an IP-rated, wall-mount housing for outdoor and washdown areas. Built for big spaces that also face the weather.
- Long-life LED rated to 50,000 hours
- High-temperature LiFePO4 lithium battery
- 40m viewing distance
- Large terminal block for fast connection
- Maintained operation
- IP67, wall mount
- Fully compliant with AS/NZS 2293
- Self-test with automatic result logging
Specifications & Downloads
Documentations & Downloads
Technical Specifications
- Operating Mode
- Maintained
- Operating Voltage
- 220-260V; 50Hz
- Operating Temperature
- 1° - 45° C
- IP Rating
- IP67
- Wiring
- Large Terminal Block
- Mounting Type
- Wall Mount
- Testing System
- Self Test
- Construction
- Polycarbonate Body with
- Classification
- C0 D1.6 C90 D1.25
- Standards
- AS/NZS 2293
- AS/NZS 60598.1
- EMC
Ordering Information
- Carton Qty
- 1 pieces
- Weight
- 4kg (unit)
- Dimension (L X W X H)
- 600mm x 190mm x 400mm
Battery and Leds
- Battery
- High-Temp LiFePO4 Lithium Battery
- Power Consumption
- 6W
- Charging Time
- 16 Hours
- Lens
- 50,000 Hours
- Viewing Distance
- 40 Metres
- Replacement Battery
- BJUMBOWP - LiFePO4 Lithium Battery, 3.2V 3000mAh
Frequently asked questions
Is the EXJUMBO40MWP-ST compliant with Australian Standards?
Yes. It meets AS/NZS 2293 and AS/NZS 60598.1, is EMC compliant, and carries a C0 D1.6 C90 D1.25 classification with a 40 metres viewing distance.
What operating mode does it use?
The EXJUMBO40MWP-ST is a maintained fitting operating on 220-260V; 50Hz with 6W power consumption.
Where can it be installed?
It is designed for wall mount installation, carries an IP67 ingress protection rating, and operates between 1° - 45° C.
How is it wired and installed?
Connection is via large terminal block, with self test testing. Construction is polycarbonate body with.
What battery and light source does it use?
It uses a High-Temp LiFePO4 Lithium Battery with a 16 hours charging time and a 50,000 Hours rated LED life. Replacement battery: BJUMBOWP - LiFePO4 Lithium Battery, 3.2V 3000mAh.
What are the dimensions and carton quantity?
Dimensions are 600mm x 190mm x 400mm (L x W x H), weight is 4kg (unit), supplied 1 pieces per carton.
Does it come in other finishes?
Yes — this family is also available as EXJUMBO40MWP (Standard), EXJUMBO40MWPRB (Remote Box), EXJUMBO40MWPRB-ST (Remote Box Self Test).
