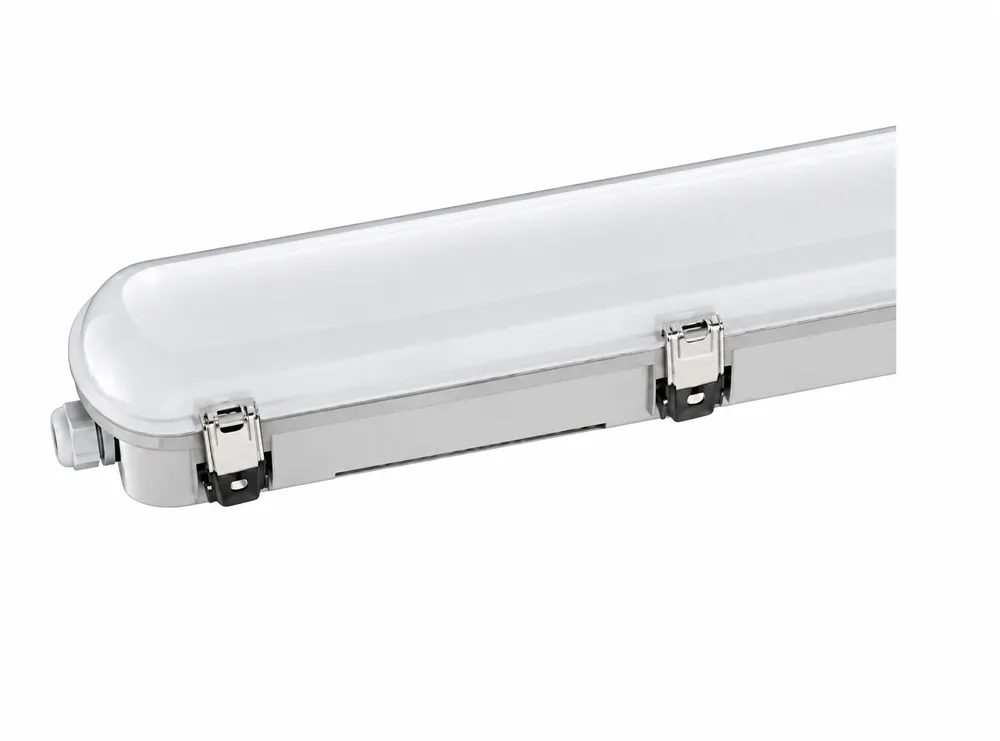

18W LED 600mm Temporary 48V ELV Weatherproof Batten
SKU: TSB220WP-LVNon Emergency Lights48V Temporary Weatherproof Batten, Non-Emergency
Model
18W / 600mm36W / 1200mm
A 600mm non-emergency weatherproof batten for the E&E 48V SELV temporary lighting system. It gives general site lighting on the switched circuit, so you can turn it off when the site is empty. Keyed plug-and-play connectors make it fast to install, move and daisy-chain.
- 48V DC SELV plug-and-play connection
- Long-life LED rated to 50,000 hours
- 2400 lm light output
- Rated for -25° to 45° C
- IP65 and IK10, surface mount
- Compliant with AS/NZS 60598.1
Specifications & Downloads
Documentations & Downloads
Technical Specifications
- Operating Voltage
- 48V DC
- Operating Temperature
- -25° - 45° C
- IP Rating
- IP65
- IK Rating
- IK10
- Wiring
- Weatherproof Circular Connector
- Mounting Type
- Surface Mount
- Construction
- Polycarbonate Body and Diffuser
- Power Factor
- >0.95
- Standards
- AS/NZS 60598.1
- EMC
Ordering Information
- Carton Qty
- 6 pieces
- Weight
- 1.4kg (unit) - 8.4kg (box)
- Dimension (L X W X H)
- 670mm x 95mm x 85mm
Battery and Leds
- Power Consumption
- 18W
- LED Rated Life
- 50,000 Hours
- Lumens
- 2400lm
- Colour Temp
- 4000k
- Beam Angle
- 110 Degrees
- CRI
- <80
Frequently asked questions
Is the TSB220WP-LV compliant with Australian Standards?
Yes. It meets AS/NZS 60598.1, is EMC compliant.
Where can it be installed?
It is designed for surface mount installation, carries an IP65 ingress protection rating, and operates between -25° - 45° C.
How is it wired and installed?
Connection is via weatherproof circular connector. Construction is polycarbonate body and diffuser.
What are the dimensions and carton quantity?
Dimensions are 670mm x 95mm x 85mm (L x W x H), weight is 1.4kg (unit) - 8.4kg (box), supplied 6 pieces per carton.
Does it come in other finishes?
Yes — this family is also available as TSB440WP-LV (Standard).
